LED按鈕開關為按鈕開關+LED的復合式按鈕開關，開關功能件內部帶有LED指示燈，既能準確指示開關通斷狀態，同時又非常方便用戶在黑暗中尋找開關位置。它的開和關的操作都在同一位置，手按松開后翹板自動恢復平整狀態，手感更好，而且壽命更長。

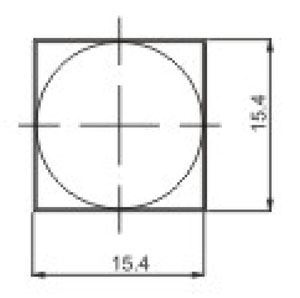

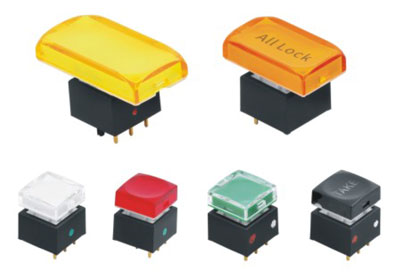

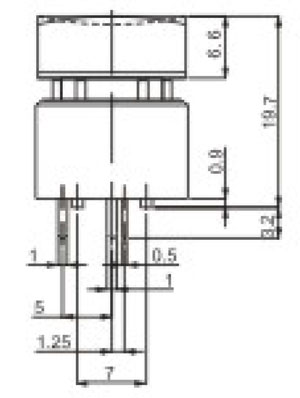

帶燈按鈕開關R2915(A)

• Rating：0.5A,100VAC;0.2A,250VAC;0.5A,25VDC

• Contact Resistance：Silver contact:50mΩ MAX

• Insulation Resistance：500VFC,100MΩ MIN

• Operating Temperature：-40℃ ~85℃

• Operating Force：200±100gf.(1P2T)

• Operating Life：200,000 cycles

Part Number	Rating	Contact Resistance	Insulation Resistance	Operating Temperature	Operating Force	Operating Life	PDF下載
R2915-3M-W-RGBT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
R2915-3M-W-GT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
R2915-3M-W-WT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
R2915A-3M-W-□-T-26	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
R2915A-3M-W-RGBT-34	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
R2915A-3M-W-□T-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
R2915A-3M-W-UT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
R2915AP-3M-W-UT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	暫無
